Specification | |
Model | Nano N1041 |
Color | Titanium gray (Color can be customized) |
Material | High-quality all aluminum,surface anodic oxidation |
Processor | Onboard Intel Celeron J4125（Quad core quad threading,4MB Cache,2.0GHz,pulse frequency 2.7GHz） |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 1DDR4 2400MHz SODIMM Memory Slot,Max. Support 8GB |
BIOS | AMI UEFI BIOS |
Display Chip | Integrated Intel HD Graphics 600 |

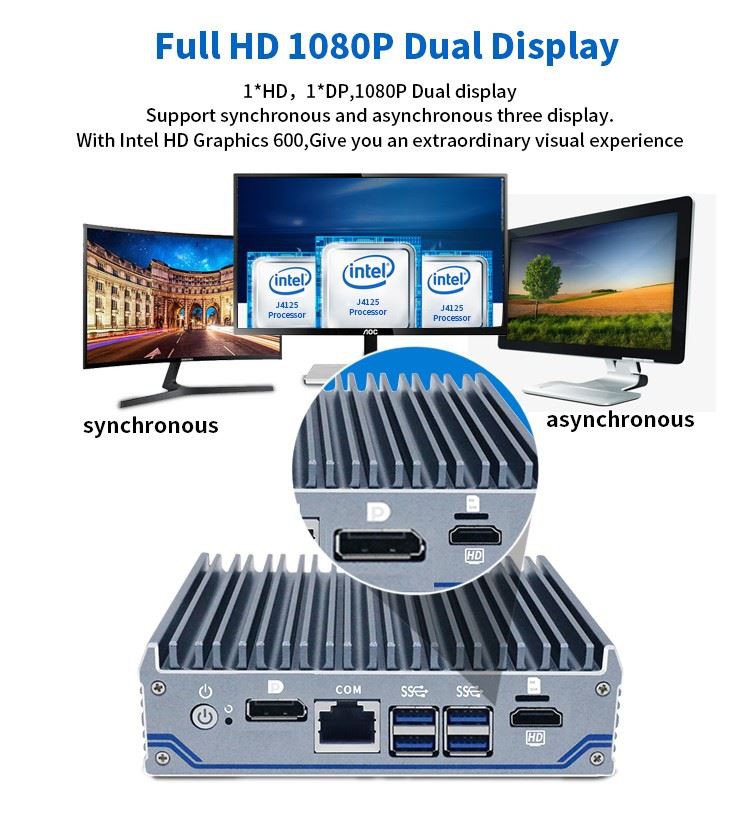

Display Port | 1HDMI,1DP（Support synchronous and asynchronous dual display,Max Resolution support 4096x2160 @ 60Hz） |

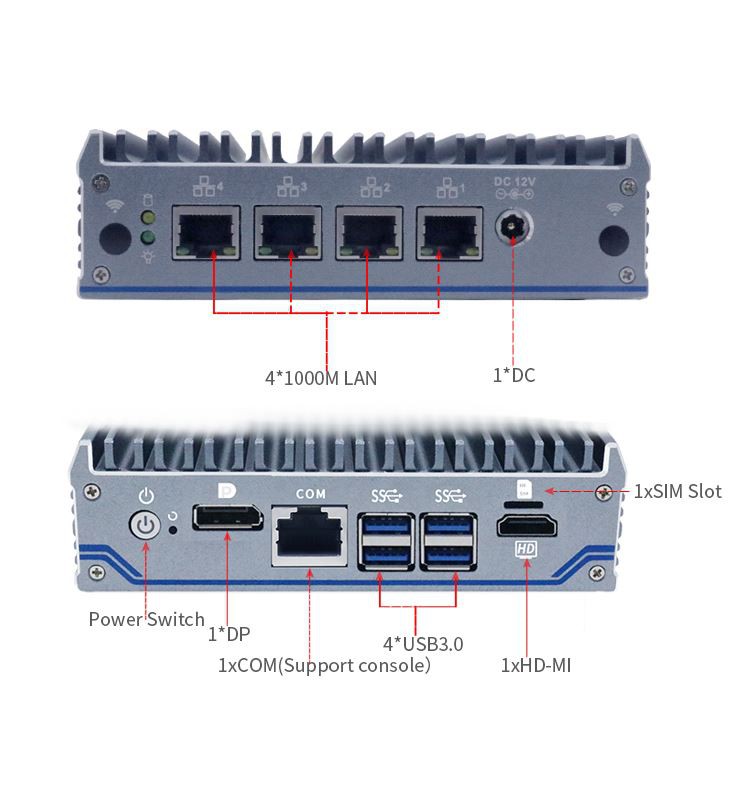

Front I/O | 1Power Switch,1DP,1HDMI,4USB3.0,1SIM Slot |
1RJ45 COM（Support console）,1Reset | |
Rear I/O | 1DC,41000M LAN |
Expansion Slot | Support 1M.2 2280 M-key Slot（Support SATA Protocol） |
Support1M.2 2230 E-key Slot（Only support USB BT） | |
Support1Mini PCIE Slot（4G Optional,External SIM slot:only support USB Wifi/BT） | |
Network | 4Intel i211-AT 10/100/1000M Ethernet LAN |
Storage | 1M.2 2280SSlot,12.5'' HDD |
Input Voltage | Support DC 12V Input |
Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot |
Work Temp | 0 degree - plus 50 degree （Commercial HDD）,-20 degree - plus 60 degree （Industrial SSD）,Surface air flow |
Work Humidity | 0 percent - 95 percent non-condensing |
Certificates | CE, CCC, FCC Class A, ROHS |
Dimension | 144 126.5 42 mm |
Net Weight | 0.7 kg |
Application | Firewall, VPN, Network Server, Network Security, Router and etc. |
Accessories List | ||
Name | Quantity | Specification |
Power Adapter | 1 | 12V 4A/12V 5A |
Power Cord | 1 | Optional (China, US, EU, UK etc.) |
VESA Bracket | 1 | Standard |
Order Information | |||
Configuration 1 | Nano N1041 | Intel Celeron J4125 | Standard Ports |
